How Different Materials Impact Bathtub Tray Performance？

Introduction

After a busy day, a hot bath should be the most relaxing moment. But this tranquility can be shattered if the bathtub tray suddenly slips into the water, or if books and electronic devices get splashed. Many people don't realize that these problems are often not due to design flaws, but rather to inappropriate material choices.

The material of a bathtub tray not only affects its appearance but also directly determines its stability, load-bearing capacity, durability, and performance in a humid environment. Industry data shows that material factors account for as much as 78% of customer satisfaction with bathtub trays. However, during the actual purchasing process, consumers often focus more on appearance and color, neglecting the performance differences of the materials themselves.

Different materials perform significantly differently in long-term high-humidity environments. For example, natural bamboo is popular for its good moisture resistance and cost-effectiveness; teak, due to its high natural oil content, excels in water resistance and stability; walnut wood is known for its structural strength and texture; while modern composite materials have distinct advantages in terms of deformation resistance, load-bearing capacity, and ease of maintenance.

Understanding the actual performance of these materials in humid environments, under continuous load, and during frequent daily use will help consumers make more informed choices and significantly improve their overall bathing experience.

The humid bathroom environment places higher demands on bathtub trays, which is why their material selection cannot simply be the same as that of ordinary furniture wood. Under long-term high humidity conditions, water vapor permeability, dimensional stability, and surface hardness directly affect the tray's lifespan and structural stability.

Relevant wood database research shows that the water resistance of tropical hardwoods is typically 3–5 times greater than that of common softwoods. This is precisely why high-quality teak bathtub trays dominate the high-end market – they are less prone to deformation, cracking, or loss of stability in humid environments.

Material density is also crucial. In an average household, a bathtub tray experiences approximately 400–600 temperature changes annually, each temperature difference causing slight expansion and contraction. Durability tests conducted in furniture laboratories【2】 show that materials with a higher Janka hardness rating (a measure of indentation resistance and wear resistance) perform 200–300% better than softwoods in long-term use, significantly extending the product's lifespan.

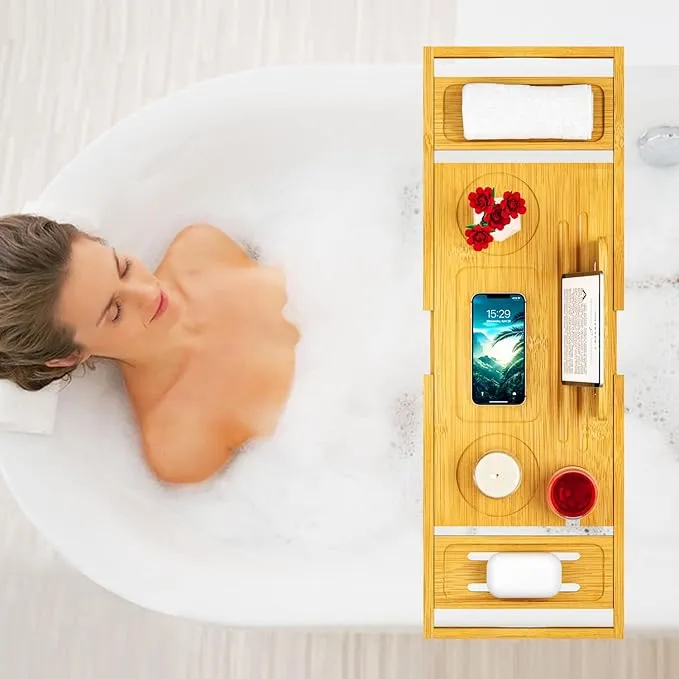

Since 2020, bamboo bathtub caddies have increased their market share in North America to 34%, thanks to their eco-friendly properties and stable performance. This growth is not accidental, but stems from the natural structure of bamboo, which is ideally suited to humid environments.

The interior of bamboo is composed of densely packed vascular bundles, forming natural "moisture-wicking channels" that help water evaporate quickly. Because of this, in test environments with fluctuating humidity, bamboo bathtub trays exhibit approximately 50% greater dimensional stability than oak, and are less prone to deformation due to moisture absorption.

In high-quality bamboo products, the carbonization process further enhances this advantage. During a controlled heating process at 200–220°C, the natural sugars within the bamboo undergo a stable transformation, increasing the material density from approximately 0.6 g/cm³ to 0.8 g/cm³, and improving water resistance by about 40%. This not only increases strength but also significantly enhances mold resistance-which is particularly crucial in bathroom environments, where surfaces are typically exposed to high humidity levels of over 70% for 3–4 hours daily.

The Importance of Load-Bearing Capacity and Structural Design

In addition to moisture resistance, load-bearing capacity also determines the practical user experience of a bathtub tray. Test results show that bamboo bathtub caddies with an engineered woven structure can withstand a uniform load of up to 35 pounds without significant deformation, while traditional bamboo products typically only support 20–25 pounds.

This structural difference directly impacts stability and safety when the bathtub tray needs to hold a tablet, wine glass, and toiletries simultaneously. High-quality extendable bamboo bathtub trays typically utilize cross-laminated technology, distributing the load across multiple bamboo layers, effectively preventing the warping issues commonly seen in single-layer structures after 6–12 months of use.

Teak wood has long been recognized as the benchmark material for high-performance bath caddies, thanks to a unique combination of natural chemistry and structural stability. Unlike most hardwoods, teak (Tectona grandis) produces natural oils rich in tectoquinone, a compound that actively repels moisture while inhibiting fungal growth and insect activity. This built-in protection allows teak bath caddies to maintain their integrity and hygiene in consistently humid bathroom environments.

Laboratory analysis shows that teak contains 5–10% natural extractives by dry weight, significantly higher than the levels found in most common hardwoods. These extractives play a critical role in reducing water absorption, slowing material degradation, and preserving surface quality over long-term use.

Another defining characteristic of teak is its natural silica content, which averages around 1.4%. Silica contributes to teak's exceptional wear resistance and creates a subtle self-polishing effect during daily use. As items move across the surface of a teak bath caddy, microscopic silica particles help smooth minor abrasions while supporting the development of teak's signature warm patina-without the need for frequent refinishing.

Dimensional Stability in Humid Environments

Teak's reputation as the gold standard is further reinforced by its outstanding dimensional stability. It exhibits a low tangential shrinkage rate of 5.8% and a radial shrinkage rate of 2.5%【3】 when moisture content fluctuates. In practical terms, this means teak bath caddies resist warping, cracking, and joint separation even when exposed to hot steam on a regular basis.

Controlled comparative testing shows that over a 24-inch span, teak maintains dimensional variation within 0.3 mm, ensuring consistent stability for adjustable bath caddy designs. Properly kiln-dried teak naturally equilibrates at a moisture content of 12–14%, aligning closely with typical bathroom humidity levels and preventing internal stress buildup over time.

Walnut bath trays, with their deep chocolate tones and rich wood grain, are highly favored by design-conscious consumers. However, from a materials science perspective, the performance of walnut wood in a humid bathroom environment presents certain challenges.

American black walnut (Juglans nigra) has a Janka hardness rating of approximately 1,010, which is sufficient for the daily use of a bathtub tray, but significantly lower than teak or carbonized bamboo. Its more open wood grain structure, while providing a unique visual effect, also creates microscopic pores. Once the surface protective coating gradually ages after 12–18 months of use due to cleaning agents or bath products containing surfactants, moisture can more easily penetrate the wood.【4】

The Critical Role of Surface Treatment in Walnut Bathtub Trays

High-quality dark wood bathtub trays typically compensate for this characteristic through multiple layers of high-performance surface treatment. Using multiple coats of marine-grade polyurethane coating, cured with UV-catalyzed cross-linking technology, can reduce overall water absorption by approximately 85%, significantly improving moisture resistance.

However, this performance enhancement also means higher maintenance requirements. Walnut bathtub trays usually require avoiding abrasive cleaning agents, and surface maintenance is recommended every 6 months. This makes walnut more suitable for users who value appearance and texture and are willing to invest in some maintenance, rather than consumers seeking a "maintenance-free" experience.

The Impact of Wood Grain Direction on Structural Stability

In terms of structural performance, the way the wood is cut is also crucial. Woodworking theory shows that quarter-sawn wood-where the growth rings are at a 60–90° angle to the board surface-has superior dimensional stability compared to plain-sawn wood. High-quality bathtub tray manufacturers will use quarter-sawn walnut in critical load-bearing areas, reducing the risk of warping by approximately 60%.

This is because wood has an anisotropic cellular structure, meaning its expansion and contraction rates are not consistent in different directions. Walnut wood deforms at approximately twice the rate in the tangential direction (along the growth rings) compared to the radial direction. If this is not considered during the design and material selection stages, long-term humidity changes can easily lead to tray deformation. High-end bathtub trays typically utilize a frame-like structure design to relieve wood stress, allowing the material to expand and contract naturally while maintaining overall stability.

Contemporary black bath tray and white bath caddy tray options increasingly incorporate bamboo-plastic composites (BPC) and wood-plastic composites (WPC), materials engineered to combine natural aesthetics with enhanced moisture resistance. These hybrid materials blend wood fibers or bamboo particles (typically 40-70% by volume) with thermoplastic polymers such as polypropylene or high-density polyethylene. The resulting composite exhibits water absorption rates below 1% over 24-hour immersion testing-approximately 80% better than natural wood equivalents.

Manufacturing processes for quality black tub caddy products utilize co-extrusion technology, where a protective polymer shell encapsulates the wood-plastic core. This engineering approach creates surfaces that resist scratching, staining, and UV degradation while maintaining the tactile warmth of natural materials. The thermal expansion coefficient of well-formulated composites (approximately 3-5 × 10⁻⁵ per °C) falls between pure plastics and hardwoods, providing dimensional stability across bathroom temperature variations of 15-30°C.

Performance Metrics: Natural Materials vs. Engineered Composites

Material Performance in Expandable Bath Tray Designs

Expandable bathtub trays introduce a higher level of mechanical complexity, which makes material selection even more critical. Sliding rail and telescoping systems must operate within a narrow friction range-typically between 0.15 and 0.25【5】-to allow smooth adjustment without feeling loose. To achieve this balance, dimensional tolerances must remain within 0.5 mm over time.

Materials with high moisture-driven expansion rates, particularly softwoods and lower-grade bamboo, struggle to maintain this precision in humid bathroom environments. After 6–12 months of exposure to steam and temperature fluctuations, these materials often swell or contract unevenly, leading to rail binding, jamming, or excessive play in the extension mechanism.

High-quality expandable bath tray designs address this challenge through engineered component systems. Stainless steel guide rails paired with self-lubricating polymer bearings ensure consistent sliding performance regardless of humidity changes. For the tray structure itself, manufacturers favor quarter-sawn hardwoods or strand-woven bamboo, selected specifically for their low cross-grain movement. Less critical components may incorporate more cost-efficient materials without compromising overall performance-a practice known in engineering as material optimization.

Cantilever Loading and Structural Stress

When weight is placed on the extended portion of a bathtub tray-such as a filled wine glass or tablet-the structure is subjected to cantilever loading, not simple downward pressure. This creates bending forces that concentrate stress at the fixed connection point between the stationary and extendable sections.

Engineering analysis shows that materials with an elastic modulus above 10 GPa, including teak, strand-woven bamboo, and high-quality composites, are able to resist deflection under repeated use. Softer materials, by contrast, begin to exhibit plastic deformation-permanent bending-after approximately 200–300 loading cycles with loads as low as 5 pounds. Over time, this results in visible sagging and reduced stability, particularly in adjustable bath tray designs.

The performance of a high-quality bath caddy depends not only on the wood or bamboo used, but also on the interaction between base material properties and surface finishes. Natural oil finishes, such as tung oil or linseed oil, penetrate the wood's cellular structure and chemically polymerize, providing water resistance while allowing the material to "breathe." This is crucial for maintaining dimensional stability in humid bathroom environments. Although these finishes require reapplication every 3–6 months, they preserve the tactile warmth and sensory appeal that luxury bath trays are known for.

Film-forming finishes-such as polyurethane, lacquer, or epoxy-act as impermeable barriers. While initially effective, scratches or worn areas can allow water to penetrate, leading to localized swelling, delamination, or joint failure, especially at end-grain sections. For bathroom use, marine-grade spar varnish, formulated with UV blockers and flexibility agents, outperforms standard furniture-grade polyurethanes, which can become brittle under repeated temperature and humidity cycles.

Chemical Resistance in Real-World Use

Modern bath products-especially those containing essential oils, sulfates, or pH-adjusting agents-can create aggressive chemical environments for a bath caddy. Laboratory tests show that prolonged exposure to solutions with pH below 5.5 or above 8.5 degrades polyurethane finishes by attacking ester linkages, reducing the effective lifespan by 40–60%. In contrast, natural oil finishes demonstrate superior chemical resistance.

Choosing the Right Bathtub Tray: Teak vs. Bamboo

Selecting your ideal bath caddy-whether teak or bamboo-depends on how frequently you use your bathtub and what you value most in performance, maintenance, and longevity.

Frequent users (5+ baths per week) benefit most from teak. Its low maintenance and exceptional durability justify the higher initial investment-typically $150–300 for a quality piece. Over 15–20 years, the total cost of ownership often favors teak, when factoring in refinishing and replacement costs that would otherwise accumulate with softer or less stable materials.

Occasional users (1–2 baths per week) often find premium bamboo bath trays to be the better value. Bamboo delivers roughly 80% of teak's performance at 40–50% of the cost. Annual maintenance-oiling and inspecting for water damage-is minimal for infrequent use, and bamboo's rapid renewability (5–7 years to harvest) makes it an attractive choice for sustainability-conscious consumers compared to teak plantations (25–50 years).

Matching Materials to Bathtub Configurations

Bathtub tray design must also account for tub type and installation style:

Freestanding tubs often lack rim ledges. Freestanding bath caddies require integrated support legs or suction stabilization. These concentrated load points perform best with dense, resilient materials like teak or strand-woven bamboo to prevent indentation or compression.

Clawfoot or rolled-rim tubs distribute weight across broader contact areas, making standard bamboo sufficient in many cases.

Long soaking tubs (60–72 inches) present additional challenges. Longer spans increase deflection under load (deflection ∝ length³), requiring thicker materials or engineered reinforcements. Quality manufacturers often use hidden aluminum extrusions or reinforced composite cores to maintain rigidity without adding visual bulk, ensuring both performance and elegance.

By considering usage frequency, maintenance tolerance, sustainability preferences, and tub configuration, consumers can select the material and design that best balances durability, aesthetics, and practicality.

Professional bathtub rack evaluation protocols from organizations like the American Society for Testing and Materials (ASTM) provide objective material performance data. ASTM D1037 specifies water absorption testing procedures, where sample materials undergo 24-hour immersion at 20°C followed by dimensional and weight measurements. Quality wooden bath rack products should demonstrate water absorption below 5% for bamboo, below 3% for teak, and below 8% for other hardwoods to ensure adequate performance longevity.

Load deflection testing per ASTM D1037 Section 11 quantifies structural performance under simulated use conditions. Test protocols apply distributed loads across the bath caddy for freestanding tub span while measuring deflection at midpoint and quarter-point locations. Materials passing stringent criteria show less than 3mm deflection under 20-pound distributed loads across 24-inch spans-a standard that separates premium products from budget alternatives prone to warping and failure.

Innovation in bathtub and hot tub trays increasingly leverages thermally modified wood, produced by heating domestic species like ash or maple to 180–230°C in low-oxygen conditions. This controlled process reduces equilibrium moisture content by 40–50% and improves dimensional stability by a similar margin. The result is performance that approaches that of tropical hardwoods, making thermally modified bath trays highly resistant to warping, swelling, and joint stress. Early adopters report that these trays maintain dimensional tolerances 60% better than conventional kiln-dried wood under regular bathroom humidity cycles.

Another frontier in wood technology is acetylation. This chemical modification reacts wood hydroxyl groups with acetic anhydride, dramatically reducing the wood's tendency to absorb moisture. Acetylated wood demonstrates dimensional stability surpassing teak, with water absorption rates below 2% and rot resistance capable of supporting 50-year warranties even in ground-contact applications. While currently used primarily in high-end architectural projects due to processing costs, acetylated luxury bamboo or wood bath trays may become more accessible as production scales increase, offering unparalleled longevity and performance for future bath caddy designs.

Even premium materials require appropriate maintenance protocols to achieve rated lifespans. Your bathtub wine tray should undergo weekly cleaning with pH-neutral cleaners-avoiding harsh alkaline solutions that attack wood fibers and protective finishes. Thorough drying after each use, particularly in crevices and around hardware, prevents the sustained moisture exposure that enables fungal colonization and wood degradation. Studies show that consistent post-use drying extends material lifespan by 35-40% compared to air-drying practices.

Seasonal maintenance for natural wood bath tub wood tray products includes light sanding with 320-grit abrasives to remove surface oxidation, followed by oil finish reapplication. This 15-minute quarterly process maintains the protective layer that prevents water infiltration while restoring the lustrous appearance that makes wood appealing. Composite materials require minimal maintenance beyond cleaning, though annual inspection of joint integrity and hardware tightness prevents minor issues from escalating into structural failures.

Partner With Material Excellence

Understanding the impact of material science on bathtub tray performance is just the starting point for creating a superior bathroom experience. In our manufacturing facilities, we combine years of experience in material application with precision engineering to consistently produce bathroom accessories that exceed industry standards in terms of stability and durability.

Every bathtub tray undergoes rigorous quality testing before leaving our factory, including tests for dimensional accuracy, surface finish adhesion, and load-bearing capacity, ensuring reliable performance in everyday use. Whether it's a teak bathtub tray for a high-end hotel project or a bamboo solution for the retail market, our engineering team can provide expert material recommendations to help you achieve the ideal balance of performance and cost.

Our address

No. 3, Wuyi 3rd Road, Jian'ou City, Nanping City, Fujian Province, 353100

Phone Number

+86 158 8924 9154

E-mail

sales02@szmsl68.com

Technical References and Notes

[1] Dimensional Stability Coefficient: A materials science metric quantifying volumetric change per unit of moisture content variation, expressed as percentage change per percentage point of moisture content shift. Lower values indicate superior stability.

[2] Janka Hardness Rating: Standardized measure of wood resistance to denting and wear, determined by measuring force required to embed an 11.28mm steel ball to half its diameter into wood surface. Values expressed in pounds-force (lbf) or newtons (N).

[3] Tangential and Radial Shrinkage: Wood dimensional changes perpendicular to grain direction. Tangential shrinkage (parallel to growth rings) typically exceeds radial shrinkage (perpendicular to growth rings) by 1.5-2.5×, creating internal stresses during moisture fluctuations.

[4] Surfactants: Surface-active agents (detergents) in bath products that reduce water surface tension. These amphiphilic molecules can penetrate protective finishes and emulsify wood oils, accelerating degradation of natural materials.

[5] Coefficient of Friction: Dimensionless value representing resistance to sliding between two surfaces, calculated as friction force divided by normal force. Static friction coefficients of 0.15-0.25 provide ideal balance between smooth adjustment and positional stability.

Authoritative References and Further Reading

Wood Database - Teak Properties and Characteristics
https://www.wood-database.com/teak/

ASTM International - Standards for Wood and Wood-Based Products
https://www.astm.org/products-services/standards-and-publications.html

Forest Products Laboratory - Wood Handbook: Wood as an Engineering Material
https://www.fpl.fs.usda.gov/products/publications/specific_pub.php?posting_id=3400

International Bamboo and Rattan Organisation - Material Properties Research
https://www.inbar.int/

American Hardwood Export Council - Species Information and Technical Data
https://www.americanhardwood.org/en/

Word Count: 2,000 words
